Hentec Industry Co.,Ltd
บ้าน ผลิตภัณฑ์โปรไฟล์การอัดรีดอลูมิเนียม

6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile

ผลิตภัณฑ์ทั้งหมด
จีน Hentec Industry Co.,Ltd รับรอง
จีน Hentec Industry Co.,Ltd รับรอง
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

รองรับผู้เข้าร่วมโครงการได้รับการสนับสนุนจาก HENTEC และคำศัพท์เฉพาะทางด้านเทคโนโลยี Merci à HENTEC เป็นผู้ช่วยที่มีประสิทธิภาพและมีประสิทธิภาพและมีคุณภาพสูงในระยะยาว Nous nous réjouissons de notre การทำงานร่วมกันในอนาคต!

—— Yann Pauwels

สนทนาออนไลน์ตอนนี้ฉัน

6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile

6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile

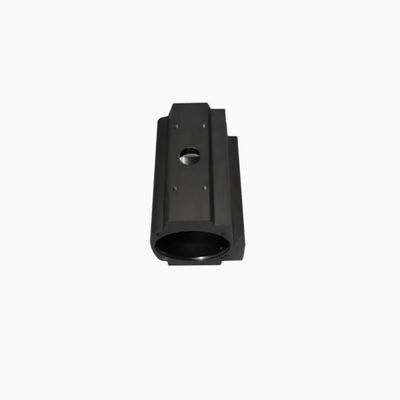

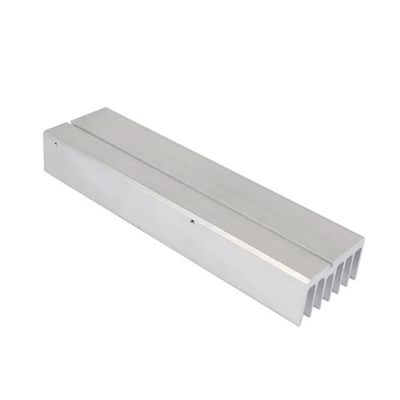

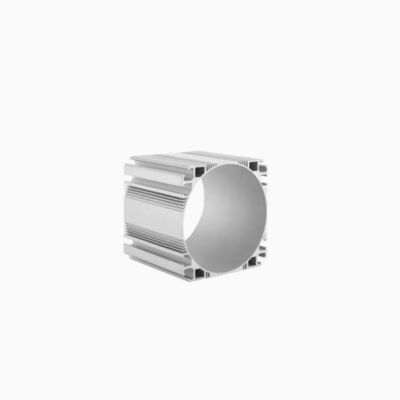

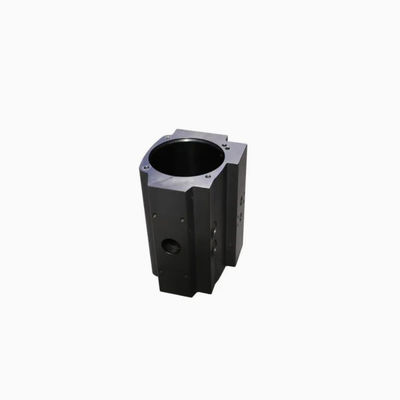

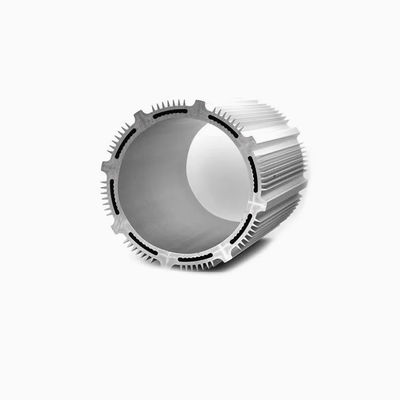

6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile

ภาพใหญ่ :  6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile

รายละเอียดสินค้า:
ได้รับการรับรอง: SONCAP, ISO, RoHS, TUV
เอกสาร: ใบแสดงผลิตภัณฑ์
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 500
ราคา: 2
รายละเอียดสินค้า
รุ่นหมายเลข: ตัวเรือนมอเตอร์ไฟฟ้าอลูมิเนียม รูปร่าง: สี่เหลี่ยม
ระดับ: ซีรีส์ 6000 อารมณ์: T3-T8
การตกแต่งพื้นผิว: ออกซิเดชันขั้วบวก ส่วนผสมของโลหะผสม: 6063
การรักษาพื้นผิว: อโนไดซ์ สี: สีเงิน /สีดำ
โปแลนด์: โปแลนด์เคมี/เครื่องกล กำลังการผลิต: 50000 ชิ้น / เดือน
แรงดึง: ≥ 160mpa (T5), ≥ 205mpa (T6) ความแข็งแรงของผลผลิต: ≥ 110mpa (T5), ≥ 180mpa (T6)
การยืดตัว: ≥ 8% เส้นผ่าศูนย์กลางสูงสุด: 350 มม.
สายการอัดขึ้นรูป: 44
เน้น:

6063 6061 Aluminum Electric Motor Housing

,

6000 Series Aluminum Extrusion Profile

,

T3-T8 Aluminum Shell

6063 6061 Customized CNC Machining Anodized Aluminum Electric Motor Housing/Shell Profile
Electric motor housing aluminum extrusion, also known as aluminum alloy motor shell or servo motor housing aluminum profiles, offers superior protection and performance for electric motors.
Key Features
  • Raw materials: 6063, 6061, 6005, 6082 aluminum alloys
  • Temper: T5, T6
  • Surface Treatment: Mill finish, Anodized, Powder Coated, Wooden Transfer, and more
  • Processing: Cutting, milling, punching, stamping, drilling, CNC machining
  • One-stop Service: Mould design, Extrusion, Finishing, Fabrication, Assembly, and Delivery
  • Packing: Carton and pallet packaging options
  • Delivery lead-time: 15-25 days
  • Customization: Various sizes and styles available with OEM/ODM support
Manufacturing Process
Die design → Die making → Extruding → Cutting → CNC Machining → Surface treatment → Packing
Packaging & Shipping
Products are packed with protective plastic film and sturdy wooden cases suitable for both sea and air shipment.
Technical Specifications
Chemical Composition:
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest
Mechanical Properties:
Alloy Temper Tensile Strength Yield Strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
6063 T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%
Technical Support
Our engineering team provides comprehensive support throughout your project:
  • Custom design services including CAD drawings and 3D models
  • Design optimization to reduce production costs while improving performance
  • Complete one-stop manufacturing from raw materials to finished products
  • Strict quality control throughout the entire production process
6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 0
Manufacturing Capabilities
Extrusion
With 44 aluminum extrusion lines including a 6800-ton unit, we produce industrial profiles up to 600mm in diameter for applications including radiators, fan blades, motor enclosures, and solar cell frames.
6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 1
Anodizing
Our 6 anodizing lines produce uniform oxidation films in various colors (silver, black, gold, champagne, imitation steel) with enhanced corrosion resistance and hardness. Strict quality control ensures color consistency across batches.
6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 2 6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 3
Painting
Our 4 powder spraying lines use high-quality Gema Switzerland nozzles with environmentally friendly paints for durable, colorfast finishes.
CNC Machining
Our advanced machining center includes:
  • 12 PRATIC machining centers for milling, drilling, and tapping long profiles (up to 6m)
  • Wegoma automatic cutting machines for precise, efficient cutting
  • 30 punching machines (50-100 ton capacity) for thick profiles
  • 10 stretch/bending machines for precise angle forming
  • 10 milling machines for complex plane machining
6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 4 6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 5 6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 6
Quality Assurance
Finished products undergo strict inspection before being carefully packaged in our organized warehouse system, ensuring quality and traceability.
6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 7
Certifications
6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 8
Company Milestones
  • 2004: Recognized Brand of the Building Industry Material Market
  • 2006: ISO9001 Certification
  • 2009: Jiangsu Famous Brand Certificate
  • 2012: Established partnerships with Panasonic and LG
  • 2015: Became supplier for BOSCH (Germany)
  • 2019: Major supplier for world's largest heater manufacturers
  • 2023: Expanding global distribution network
Notable Projects
Soccer City Stadium, Johannesburg: As the main aluminum supplier for Africa's largest stadium (94,000 seats), our materials contributed to this landmark project.
6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 9
Lobster Trailers: Our R&D team collaborated with this Nordic trailer giant to optimize designs and manufacturing processes, reducing costs while improving performance.
6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 10 6063 6061 6000 Series T3-T8 Customized CNC Machining Anodized Aluminum Electric Motor Housing Shell Profile 11
Educational Furniture: Supplied aluminum legs for school desks, demonstrating our capability to support diverse applications through strong design and manufacturing expertise.
