รายละเอียดสินค้า:
การชำระเงิน:
|
| ระดับ: | ซีรีส์ 6000 | อารมณ์: | T3-T8 |
|---|---|---|---|
| อัลลอยด์: | 6063 | การตกแต่งพื้นผิว: | ออกซิเดชันขั้วบวก |
| ความหนาของอโนไดซ์: | 8 - 25um | ความหนาเคลือบผง: | 60- 120um |
| ความหนาของโปรไฟล์: | 0.8 - 5.0 มม | ขนาด: | 3m - 6m ต่อชิ้น |
| แรงดึง: | ≥ 160mpa (T5), ≥ 205mpa (T6) | ความแข็งแรงของผลผลิต: | ≥ 110mpa (T5), ≥ 180mpa (T6) |
| การยืดตัว: | ≥ 8% | ความสามารถในการอัดรีด: | 400*150 มม. และφ360 |
| กำลังการผลิต: | 5,000 เมตริกตันต่อเดือน | MOQ: | 500kgs สำหรับแต่ละรายการ |
| ตัวเลือกรูปร่าง: | กลม, สี่เหลี่ยม, แบน, กลวง, รูปไข่, สามเหลี่ยม, U-Profile, L-Profile, T-Profile | ||
| เน้น: | Mechanical Bright Polished Aluminum C U Profile,Mirror Anodized Aluminum Extrusion Profile,Customized Color Extruded Aluminum Profile |
||

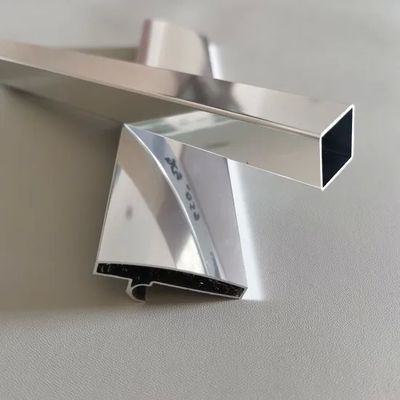

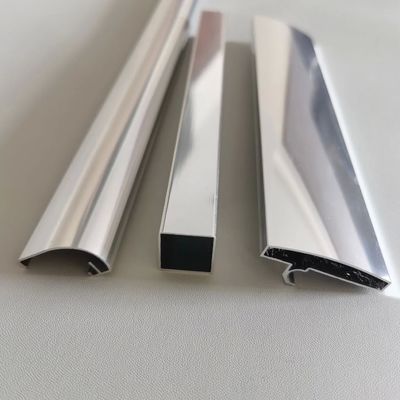

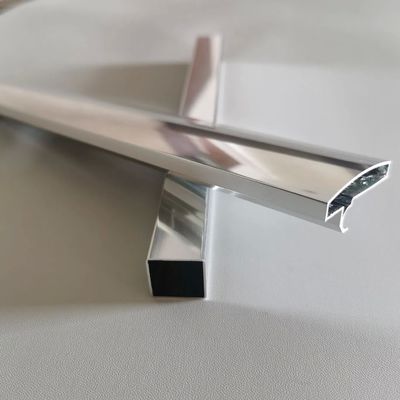

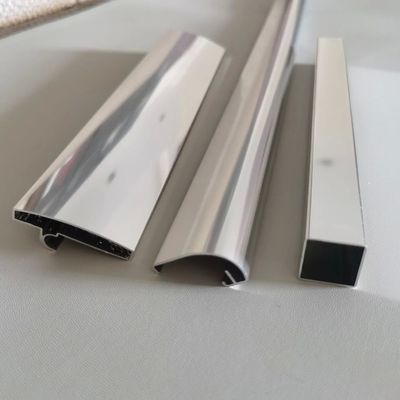

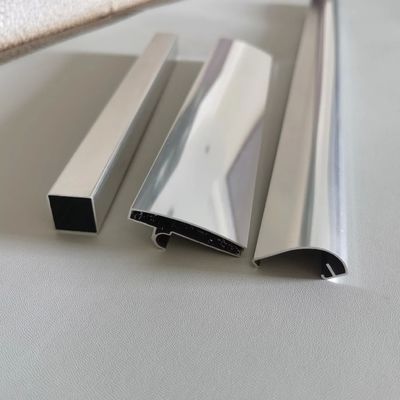

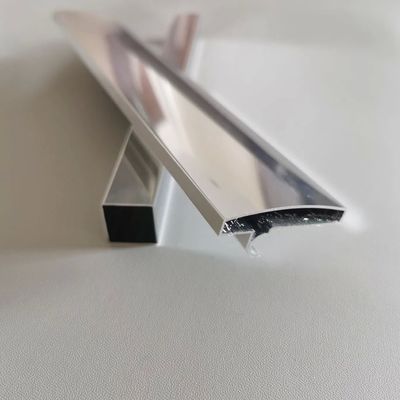

Our premium grade extruded aluminum C U profiles feature mechanical bright polished mirror anodized finish, ideal for shower room applications. Manufactured using our 4500T grade extrusion machine capable of producing any section within 400×150mm and φ360 dimensions.
Custom drawings welcome. Pricing based on aluminum ingot cost, extrusion cost, surfacing cost, and additional requirements.
| Material | Aluminium 6000 series alloy (6063, 6005, 6061) |
|---|---|
| Temper | T4, T5, T6 |
| Size | 3m - 6m per piece (custom lengths available) |
| Shape | Round, square, flat, hollow, oval, triangle, U-profile, L-profile, T-profile (custom shapes available) |
| Thickness | 0.8 - 5.0mm |
| Application | Elevator components, shower rooms, and architectural applications |
| Surface Treatment | Mill-finish, anodized, powder coated, electrophoresis, brushed |
|---|---|
| Anodized Colors | Silver, black, champagne, bronze, gold (custom colors available) |
| Anodized Thickness | 8 - 25μm |
| Powder Coated Colors | Custom colors available |
| Powder Coated Thickness | 60 - 120μm |
| Color Guarantee | Stable for 10-20 years with indoor use |
| Bundles Packing | EP foam protection with waterproof craft paper wrapping |
|---|---|
| Carton Packing | Individual plastic bags with multiple pieces per carton |
| Wood Pallet Packing | Bundles or cartons loaded on wood pallets |
| Custom Packing | Available upon request |
| MOQ | 500kg per item (13-15 tons for 20GP; 25 tons for 40HQ) |
|---|---|
| OEM Service | Accepts drawings, samples, or customer designs |
| Production Capacity | 5,000 metric tons monthly |
| Processing Services | CNC, drilling, milling, cutting, bending, tapping, welding, assembling, punching |
| Brand | HENTEC |
| Certifications | ISO9001-2008, ISO14001, SGS |
| Delivery Time | 12-18 days for die development and samples; 20-30 days for mass production after sample approval |
| Payment Terms | T/T, L/C |
| Port | Shanghai |
| Settlement | By final actual weight or drawing theoretical weight |
Our aluminum profiles are widely used in automotive, rail transportation, machinery, electronics, medical equipment, solar PV products, radiators, fitness equipment, building construction, lighting fixtures, ventilation ducts, and oil pipelines.
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
|---|---|---|---|---|---|---|---|---|---|---|
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|---|
| 6063 | T5 | ≥160MPa | ≥110MPa | ≥8% |
| 6063 | T6 | ≥205MPa | ≥180MPa | ≥8% |
| 6061 | T6 | ≥265MPa | ≥245MPa | ≥8% |
Soccer City Stadium, Johannesburg: As main aluminum supplier for Africa's largest stadium (94,000 seats), our products contributed to this landmark project.
Lobster Trailers: Our R&D team optimized designs for this Nordic trailer giant, reducing production costs while improving performance.
School Furniture Project: Supplied aluminum legs for school desks, demonstrating our design capabilities and manufacturing expertise.
